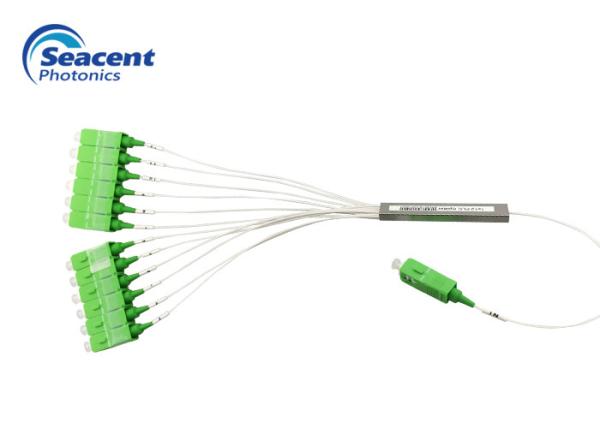

1x12 Steel Tube PLC Splitter with SC/APC Connector special ratio
Fiber Optic PLC Splitter Description
Mini Planar Lightwave Circuit (PLC) splitters are having the smallest footprint, being ideal for on the spot splicing and integration. The Mini splitters have SC,FC,LC or ST optical connectors with UPC or APC polishing and use .9mm fiber pigtails. Their casing is made of aluminum. Configurations are available for up to 1x32 for the mini type splitters.
Fiber Optic PLC Splitter Features
- Good channel uniformity
- High stability and reliability
- Certified by Telcordia GR.1209 and GR.1221
Fiber Optic PLC Splitter Applications
- Fiber to the home
- Passive optical network
- wired TV internet
- PON-FTTX network
Fiber Optic PLC Splitter Parameters
1XN
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9.0 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
2XN
| Parameter | 2X2 | 2x4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Fiber Optic PLC Splitter Detaild Specification
PLC Splitter-Mini type-Seacent Photonics.pdf
